Combined equipment is a combination required for the production of emulsified Bitumen, including Bitumen and water heating;emulsion preparation; emulsion, Bitumen transportation measurement;
Introduction:

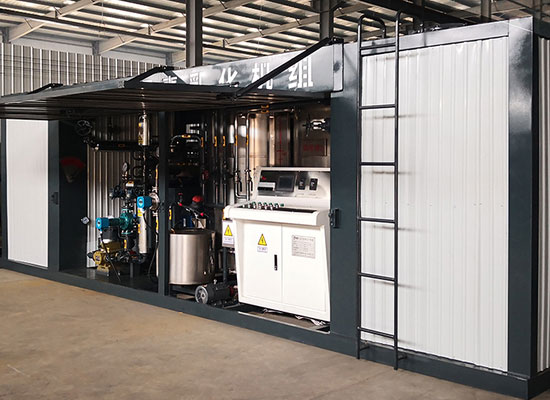

Combined equipment is a combination required for the production of emulsified Bitumen, including Bitumen and water heating;emulsion preparation; emulsion, Bitumen transportation measurement; emulsified Bitumen grinding and other major components. Users only need to connect the water and Bitumen pipelines and turn on the power supply to produce various forms of emulsified Bitumen.
Equipment Advantages:
1. The equipment adopts a monolithic structure, which facilitates marine transportation and avoids cross-national installation problems.
2. The flow display system is used, which is simple and direct.
3. All soap liquid part adopts internal corrosion design.
4. The Bitumen part adopts accurate measuring instruments, which can measure accurately.
5. the colloid mill adopts China's first-class products, which has the advantages of small grinding fineness, corrosion resistance and so on.
Equipment Model | BE-6A | BE-10A |
Types of Emulsified Bitumen Produced |
30-68% Ordinary Emulsified Bitumen
30-68% Modified Emulsified Bitumen (Latex Blending Type)
30-50% Emulsified SBS Modified Bitumen (Excluding SBS modified Bitumens not suitable for emulsification)
|
|
Production Capacity | 5-6T/H | 8-10T/H |
Emulsification Fineness | Those smaller than 5 microns occupy over 90% | |
Water Storage Capacity | ≧4.5T | ≧4.5T |
Bitumen Storage Capacity | ≧4.5T | ≧4.5T |
Emulsion Conveying Capacity | ≧4T/h | ≧5T/h |
Bitumen Conveying Capacity | ≧3T/h | ≧4T/h |
Control Mode | Manual Proportioning | Manual Proportioning |
Total Power | 26KW | 30KW |
